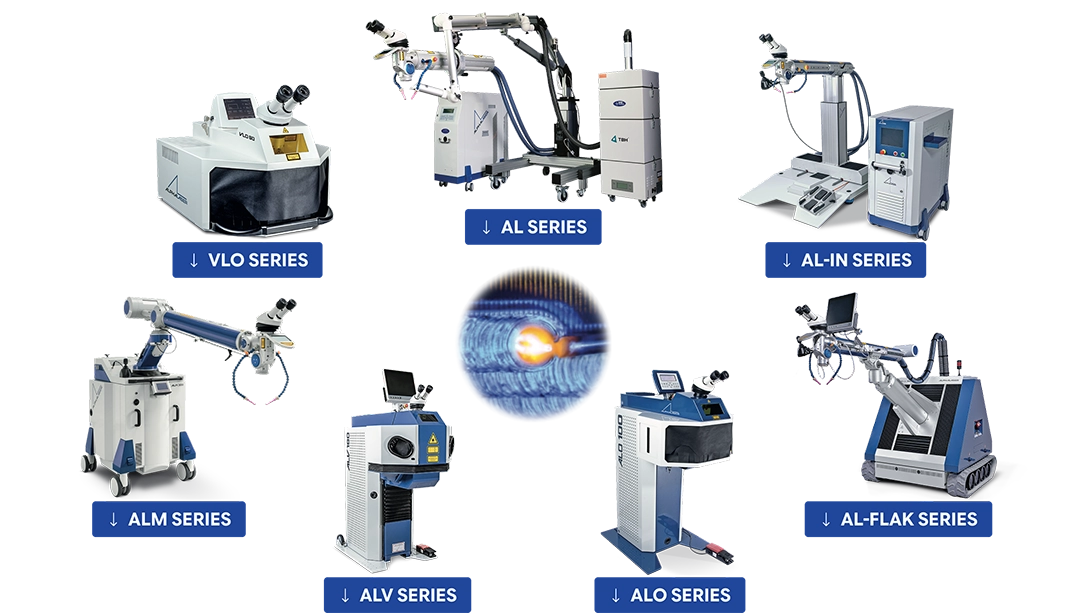

Name: Pulse Laser Welding Machines
Brand: ALPHA LASER

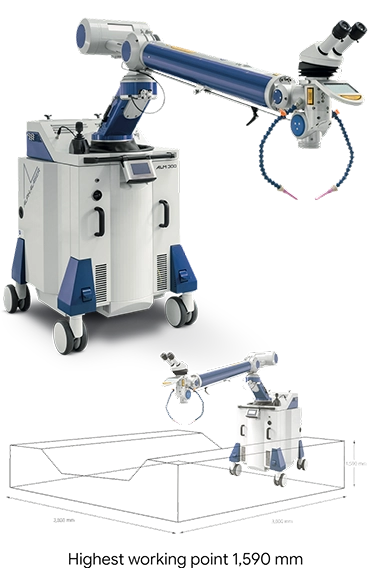

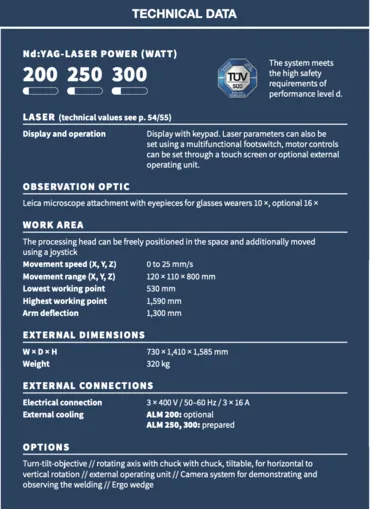

ALM SERIES

The ALM offers exceptionally short setup times, enabling rapid repair and modification of a wide range of machine components, pressing tools, and large molds - virtually anywhere.

Its impressive versatility allows either the workpiece to be brought to the laser or the laser to be taken to the workpiece, ensuring maximum mobility both within the company or customer sites.

Discovery of key benefits

Open laser system – operate without spatial restrictions for maximum workspace freedom
Safe operation – performance level D
Compact design
Very short setup times, quick use
Exceptional flexibility of laser head
Precision control by 4 axis joystick

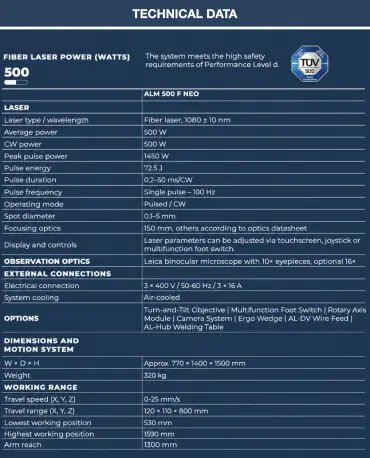

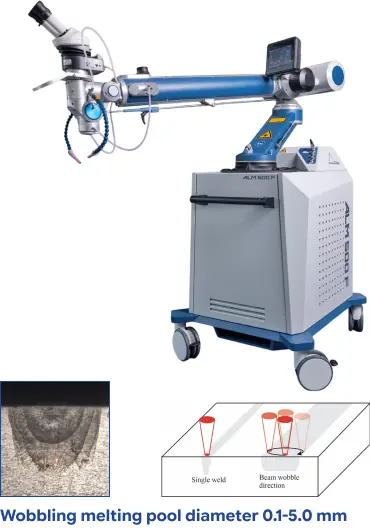

ALM 500 F NEO

ALM 500 F NEO, Proven features of the existing platform have been enhanced and optimized. The new generation of laser welding technology opens up additional application possibilities. Productivity, precision, and cost-effectiveness reach a new level, creating new opportunities for efficient and precise welding processes.

Discovery of key benefits

Open laser system – operate for maximum workspace freedom
Very short setup times, quick use
Exceptional flexibility of laser head
Precision control by 4 axis joystick

Wobbling technology

Wide seam width range 0.1-5.0 mm with wire diameters of up to 1.6 mm
Gap bridging up to 0.6 mm at thickness of 5 mm
Penetration depth up to 3 mm

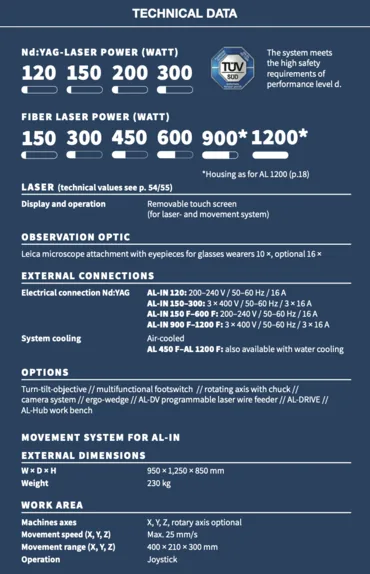

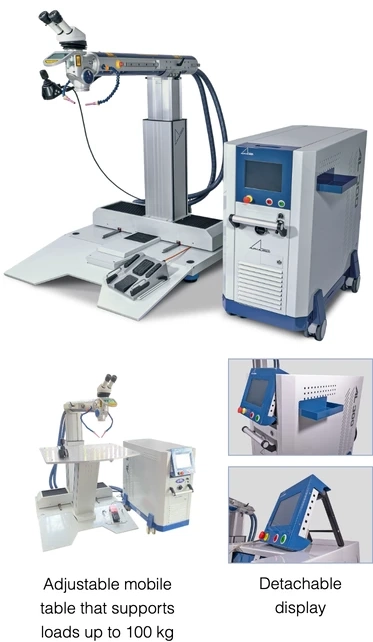

AL-IN SERIES

The AL-IN is recommended for users who value maximum flexibility in workpiece placement.
Thanks to its open design, components can be freely positioned beneath or beside the laser system. A wide range of worktables can be placed in front of the lifting column, or you can work directly on the pallet for added convenience.

Discovery of key benefits

Can be used flexibly robust powerful
The laser head can be pivoted 360°
Welding speed up to 100Hz/s
User coordinate system
App for surfaces and rotational parts
Precision control by 4 axis joystick
Capable of full automatic welding & wire feeding

New AL-IN 500 F NEO with Wobbling technology

Wide seam width range 0.1-5.0 mm with wire diameters of up to 1.6 mm
Gap bridging up to 0.6 mm at thickness of 5 mm
Penetration depth up to 3 mm

AL SERIES

The AL combined with LAD-Arm High-precision is designed to precision works, including oversized and variable-dimension workpieces, to meet the specific needs of various industry sectors.

This set-up is practicable and convenient for MOBILE WELDING at site.

Discovery of key benefits

Can be used flexibly robust powerful
The laser head can be pivoted 360°
Welding speed up to 100Hz/s
Robust and rigid machine structure
Cost performance design
High flexibility and light weight design

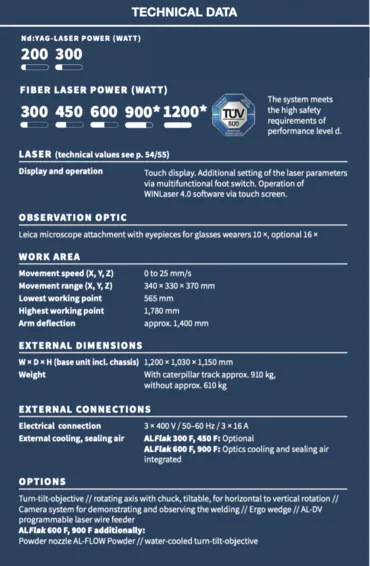

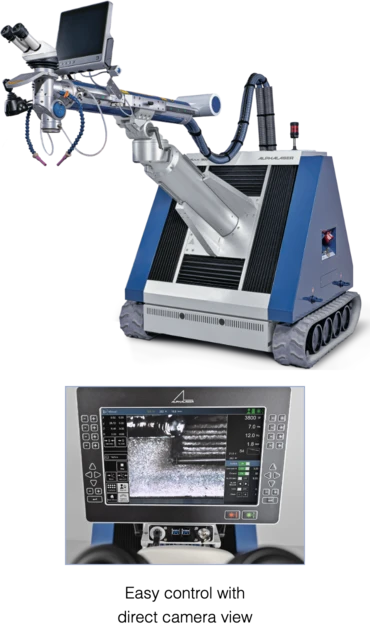

ALFLAK

The ALFLAK available with either Nd:YAG or Fiber laser source, providing a wide range of PLW applications. The fiber laser version is available with 300-1200 W, CW- or pulsed mode and laser cladding. Solid wires can be used up to 1.6 mm.

Easy and stable operation by joystick control or programming.

Discovery of key benefits

Powerful: The ALFlak is available up to 1200 watts
Large movement paths, PLW seams up to 340 mm
Welding speed up to 100Hz/s
Solid construction, perfect for programmed PLW
Programmable via WINLaser software and teach-in easy to operate
Precision control by 4 axis joystick
Capable of full automatic PLW & continuous wire feeding

AL-Flak fitted with the AL-PF powder feeder and a close-up of the AL-Flow powder ring gap nozzle

Good to know : The ALFLAK provide both -
Pulse Laser Welding & Laser Cladding

The AL-PF provides highly accurate and controlled delivery of powder materials for laser deposition welding. It can be operated directly with ALPHA LASER systems, such as ALFlak, but also functions independently if required.

Thanks to its precise rotational speed control of the dosing plate, powder is fed with high accuracy. The transparent designed Plexiglas dosing unit, allowed a clear visual monitoring of the powder flow process.

The AL-FLOW powder ring gap nozzle provides uniform, direction-independent powder feeding for precise laser cladding deposition and protective coatings. It creates pore- and crack-free layers with minimal mixing and supports wear, corrosion, and abrasion protection, multi-layer coatings, and 3D structures. Compatible with ALFlak1200F, it ensures reliable performance, efficient processing, and maximum component service life.

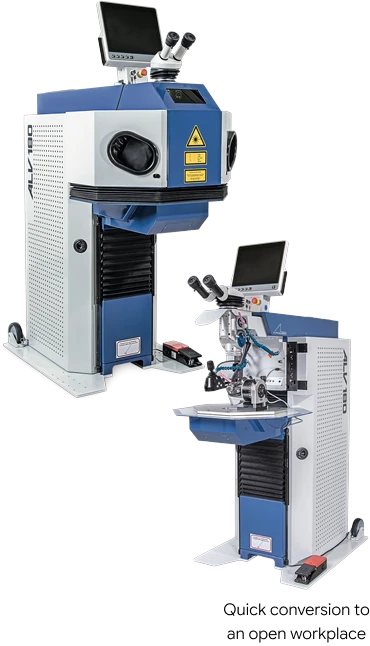

ALV SERIES

The ALV features a compact, ergonomic design with a laser-safe working chamber. Available with a range of laser sources, powers, and manual or program control options, it's perfect for ultra-precise micro-welding in mold repair, medical device manufacturing and precision sensor production.

Discovery of key benefits

Ultra-fine spot welding < 0.1 mm
Safe operation
Spacious vertical travel range with wide-opening chamber
3-axis movement, z-axis up to 50 kg
Precision control by 3 axis joystick
Optional hinged side doors for easy workpiece access

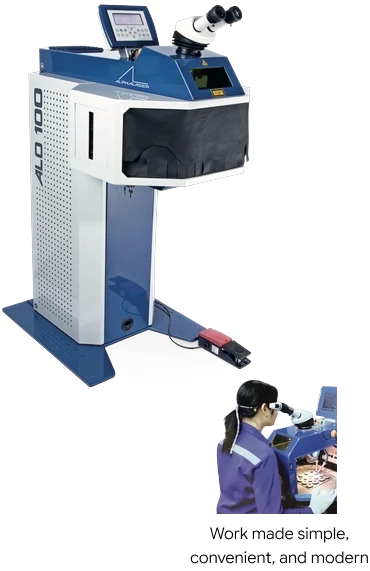

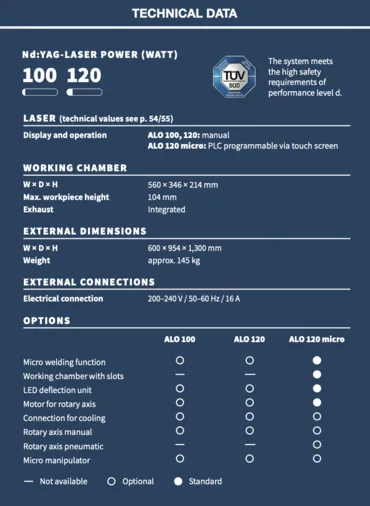

ALO SERIES

The ALO series is ideal for users who need to weld long or bulky parts quickly and precisely. Designed for comfort, safety, and easy manual handling, it features a laser-safe chamber with wide openings for convenient access.

Discovery of key benefits

Nd:YAG laser power: 100 or 120 W
Manual or programmable (ALO 120 micro with PLC touchscreen)
Spacious working chamber 560 × 346 × 214mm
High workpiece clearance (up to 104 mm)
External cooling for high-frequency use

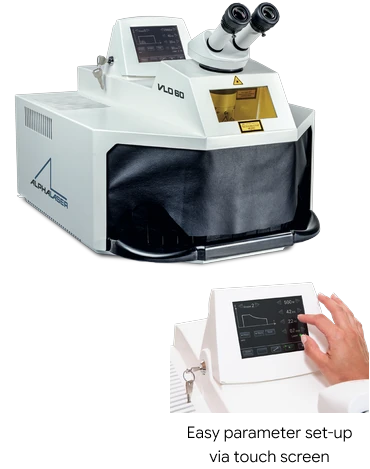

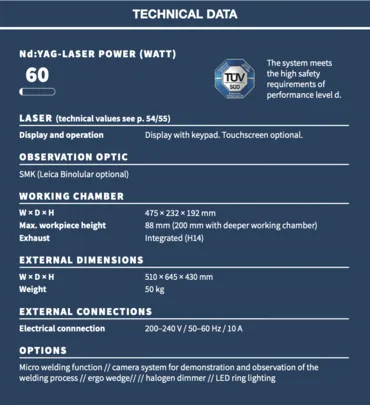

VLO SERIES

The VLO 60 is a compact manual welding laser with outstanding beam stability. Ideal for precision tasks such as dental work, jewelry welding, sensor manufacturing, and fine tool and mold applications.

Discovery of key benefits
